3-SPEED PUMP
Allows adjustable pump speed
- Grundfos 3-speed switch for extreme flexibility in system design
- Reliable starting torque
- Low noise
- Low energy
- Maintenance-free
PRESSURE REDUCING VALVE
Automatically feeds water to the system
- Automatically feeds water to the system whenever pressure drops
- Adjustable set pressure of 10 to 25 psi
- Built-in check to prevent emptying the system if incoming pressure fails
DIELECTRIC ISOLATION VALVE
Prevents water draining during service
- Full port shut-off valve
- Prevents dissimilar metal corrosion
- Eliminates air entering the system during maintenance
HEAT EXCHANGER
Isolates floor water from domestic water
- Separates heated floor water from domestic water supply
- Stainless steel
- Copper brazed
- High heat transfer efficiency
EZ MOUNT WALL BRACKET
Makes installation fast
- Flat wall mount
- Bolts securely to any solid surface
- 1/2" stand-off to accommodate power cords
SWITCHING RELAY
zone switching and diagnostic feedback
- Taco relay facilitates multi zone switching and circulation pumping
- External indicator lights give you instant diagnostic feedback
- Universal thermostat compatibility

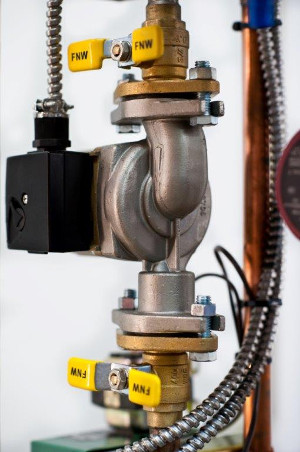

STAINLESS STEEL 3-SPEED PUMP
for domestic water circulation
- Used for sanitary domestic water circulation
- Non-corrosive and maintenance free
- Adjustable pump speed to fit your specific application

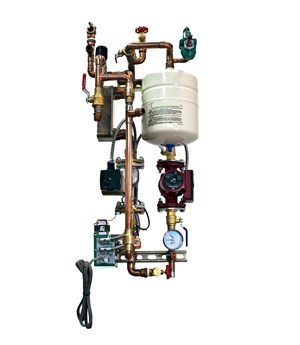

FULLY ASSEMBLED
Ready to be installed no soldering
- Pre-fabricated and fully assembled
- Can be installed right out of the box
- No soldering
- Compact design saves valuable wall space
- Faster installation
PRE-WIRED
Plugs into 110v outlet
- Panel is ready to plug into any 110v outlet
- Universal 3 prong pigtail
- PVC rubber housing
- Ground wire
- Boiler takes 240v
EXPANSION TANK
Maintains proper system pressure
- The expansion tank maintains proper pressure within the system
AIR REGULATOR
Removes excess air
- Automatic air vent
- Removers excess air from the system to prevent noise
- Brass body construction

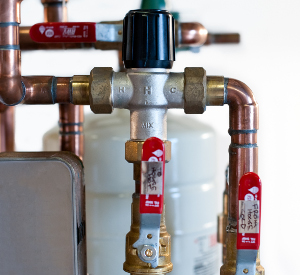

MIXING VALVE
adjusts water mixing temperature 85-150F
- Constant domestic water temperature adjustment from 85-150F
- Eliminates scalding water
- High flow
- Low head loss
